Drying Machines

Towel Dryer

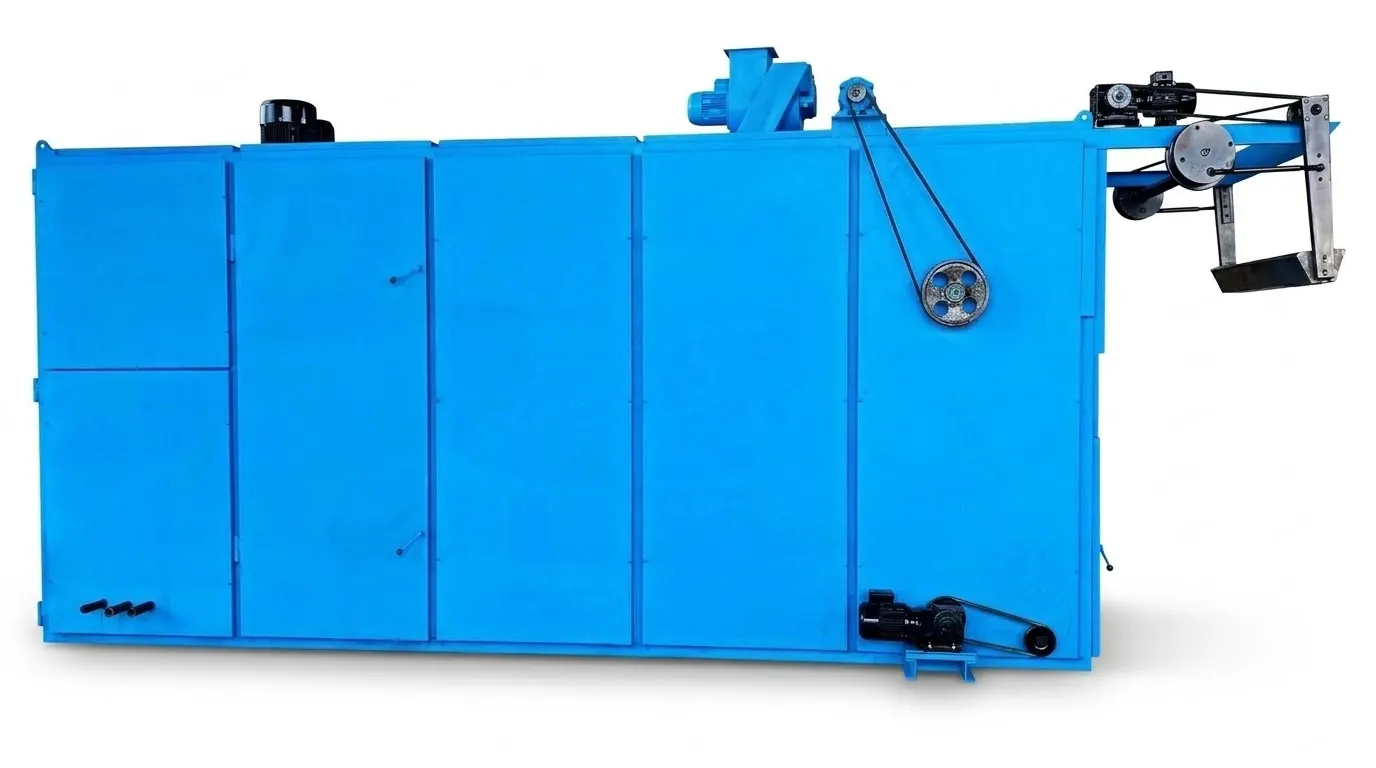

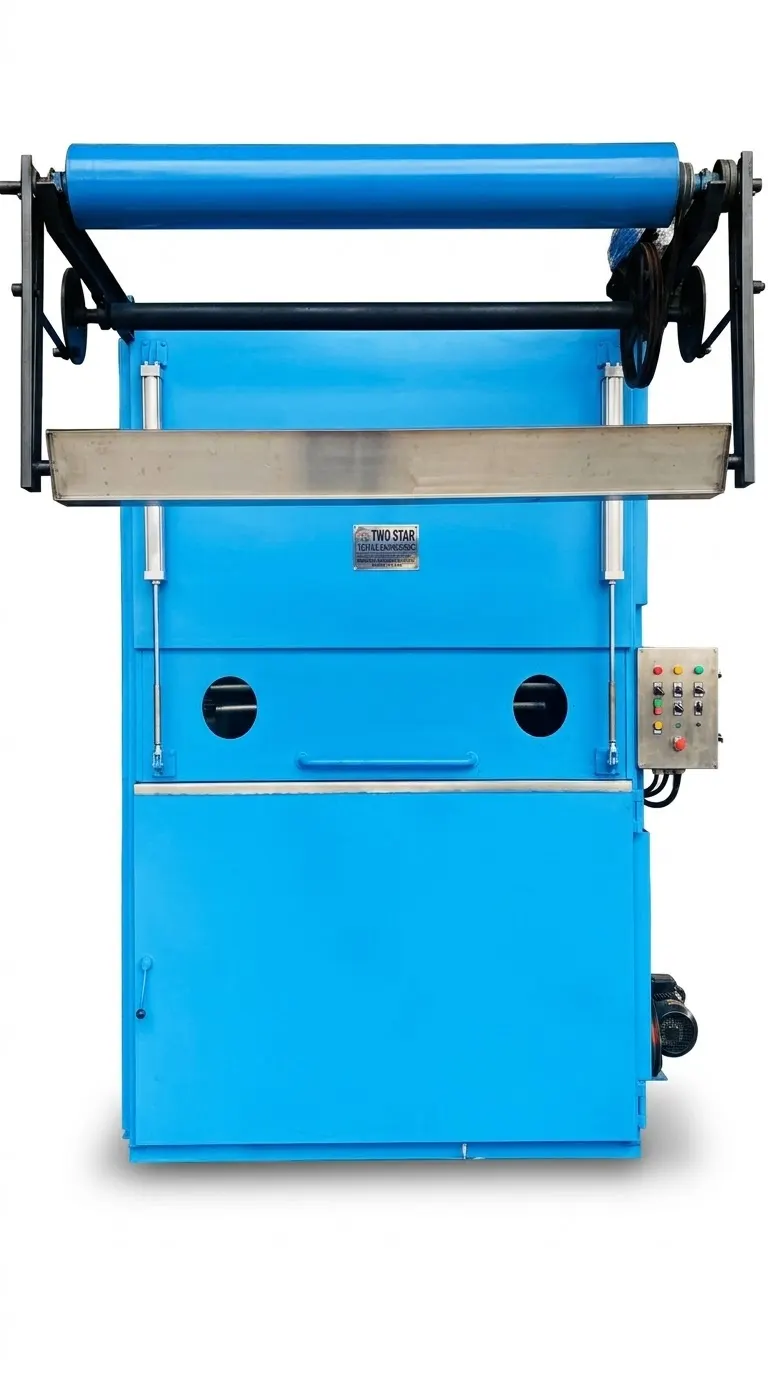

Conveyor towel dryer with 50 HP direct-coupled blower.

Continuous conveyor towel dryer, 2000 mm wide and 5660 mm long, with a 50 HP direct-coupled main blower and steam, gas or electric heating.

Capacity: 175 kg – 200 kg / hr
Built by: Two Star, Lahore

Request quote WhatsApp

Download brochure (PDF)

Overview

Built for towel and terry mills, our conveyor towel dryer delivers 175–200 kg of consistent, fluffy drying. A 50 HP, 2800 RPM imported motor drives a 2 ft impeller directly — no belts, no slip — through a three-part heat exchanger.

Choose single or double blower configuration, SS, MS or copper heat exchangers or an LPG burner, and add PLC and inverter control for precise conveyor speed and temperature.

Key features

Single or double blower configuration
Impeller direct-coupled with motor
Three-part heat exchanger
MS channel structure with nozzles
Insulated doors
Optional lapping system

Technical specifications

SPEC-013

Towel Dryer specifications
Capacity	175 – 200 kg
Width	2000 mm
Length	5660 mm (with lapping system)
Height	2800 mm (without top blowers)
Main blower motor	50 HP, 2800 RPM, direct couple
Impeller	2 ft dia
Bucket	SS 1.5 mm, 5' wide
Doors	MS 16 SWG outside / 18 SWG inside, insulated
Conveyor belt	5'-8" wide, 2.5 mm thick
Conveyor drive	2 HP gear motor with new inverter
