Dip Dyeing Machine

Hydraulic dip dyeing with programmable up, down & dip control.

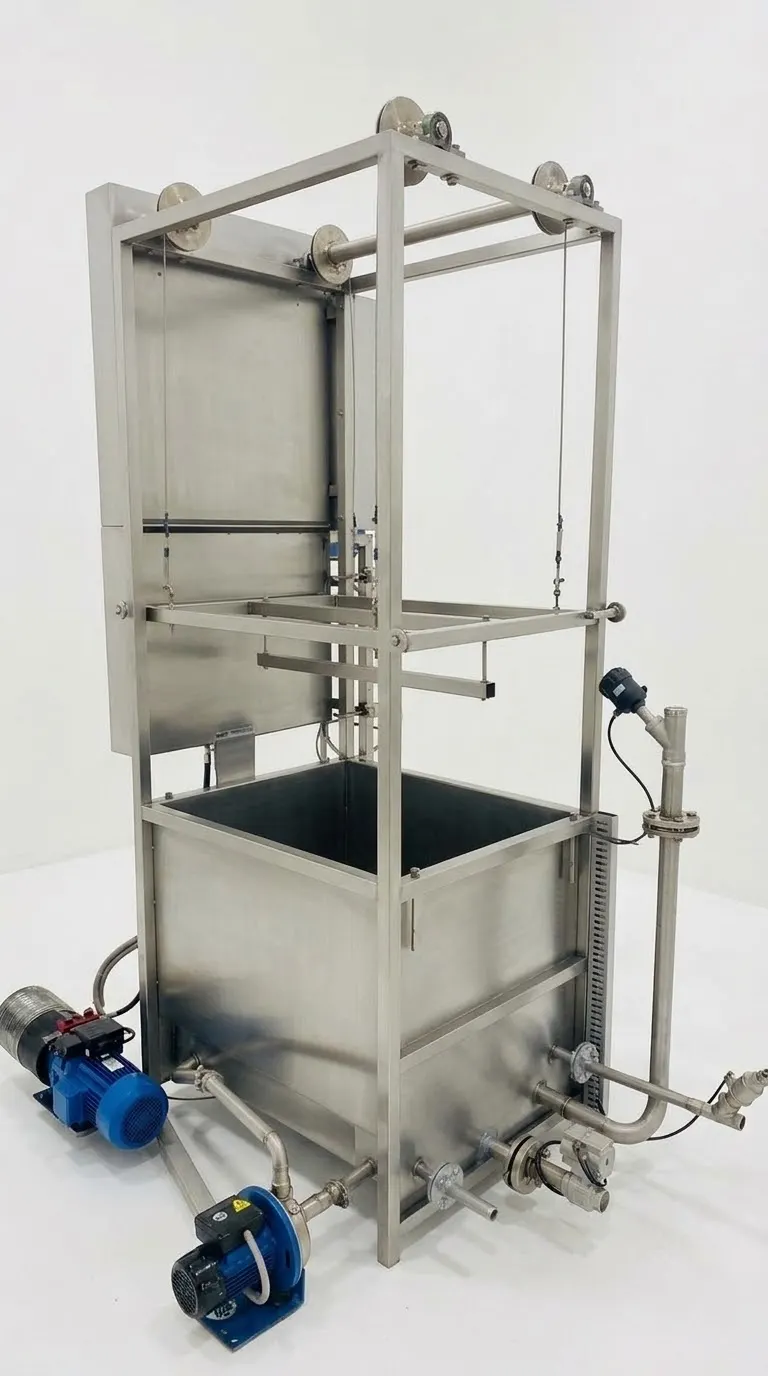

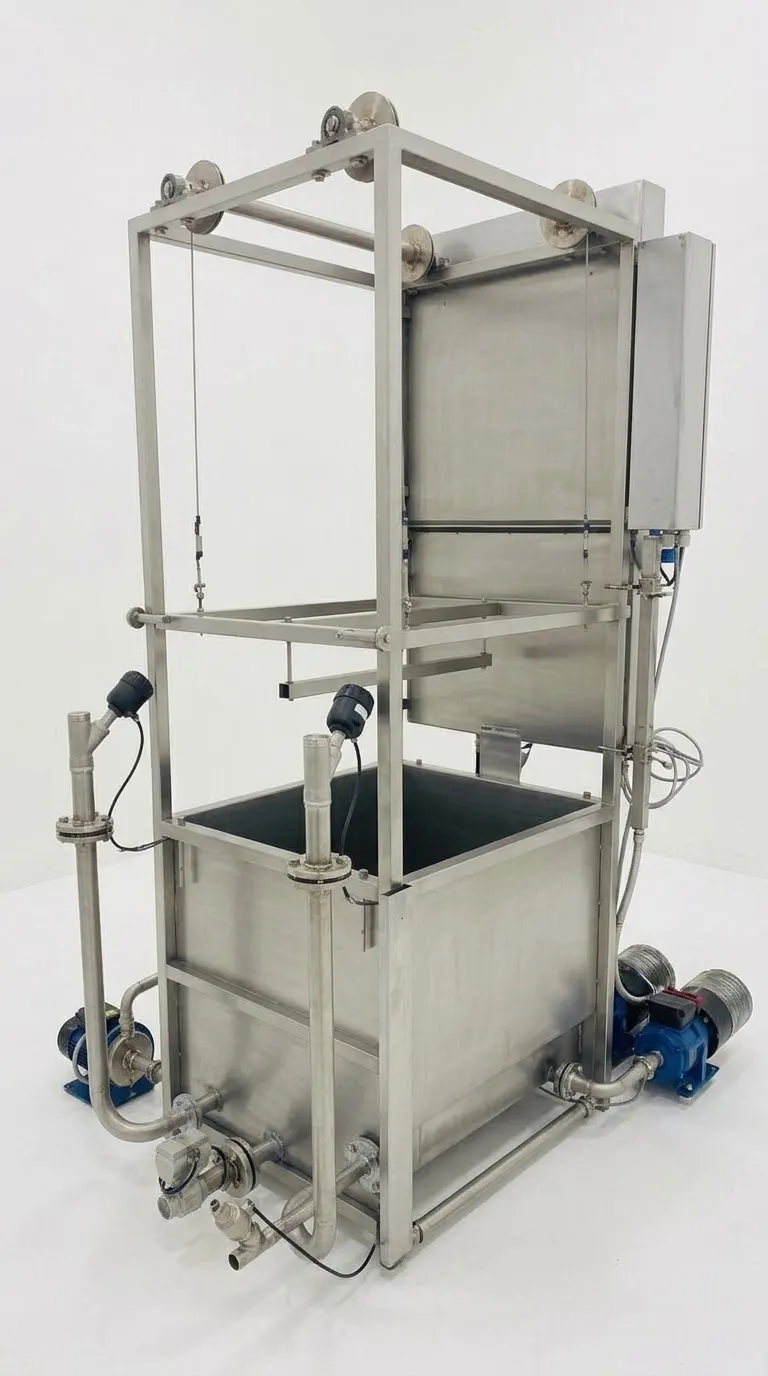

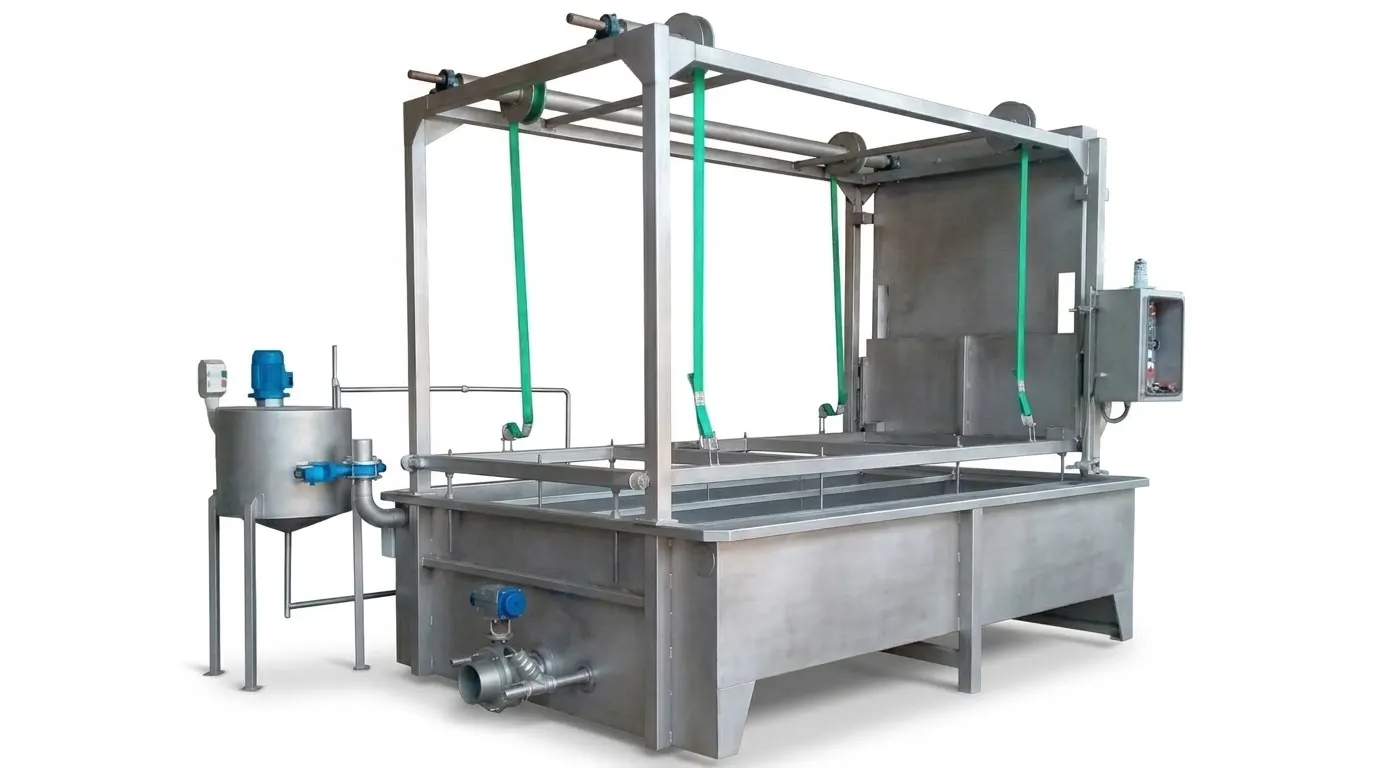

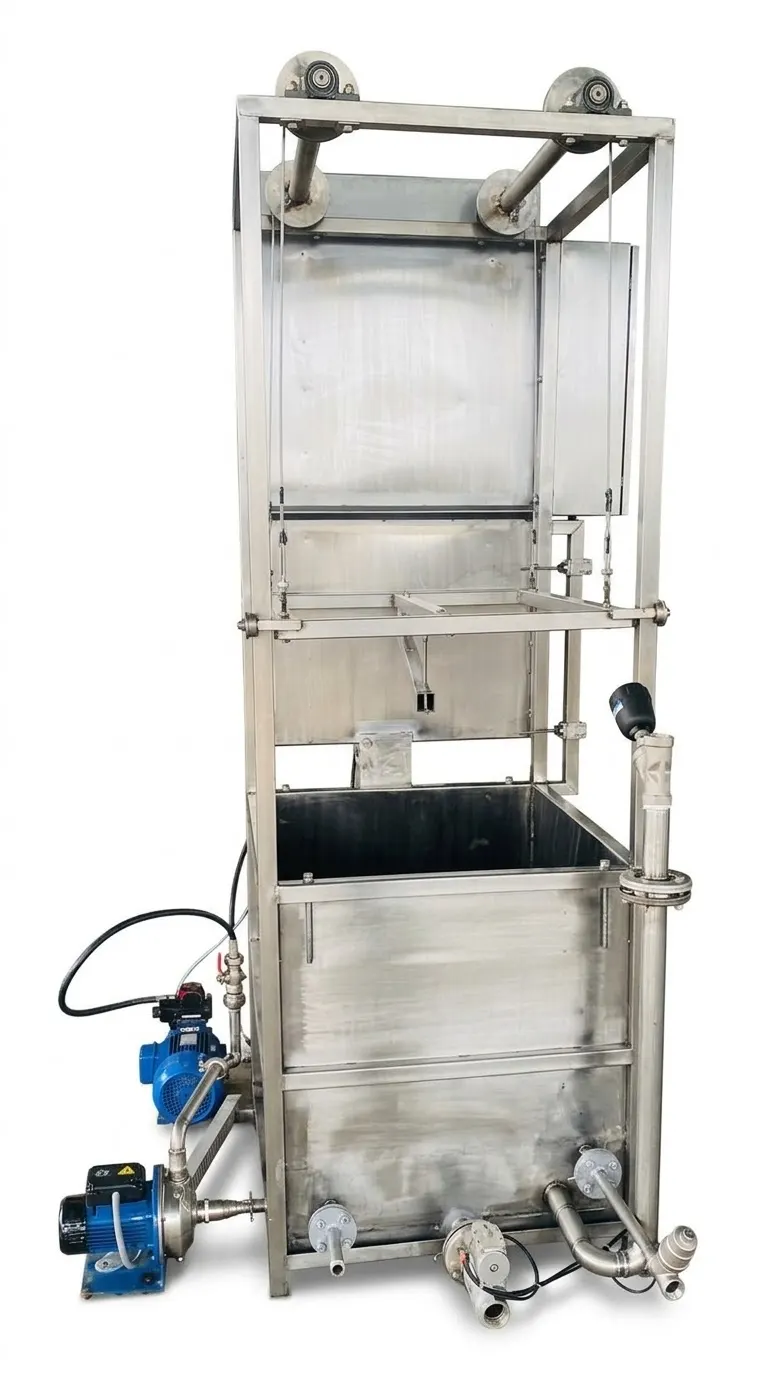

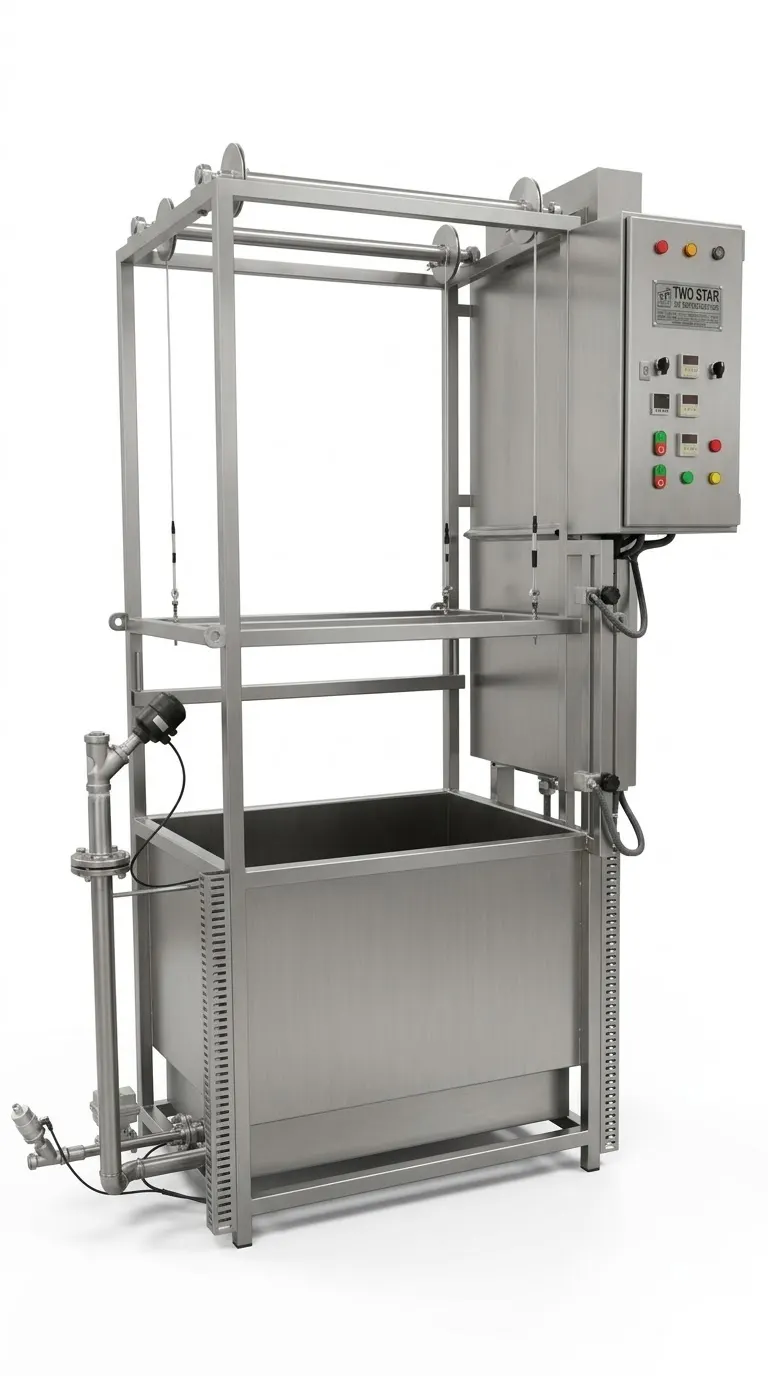

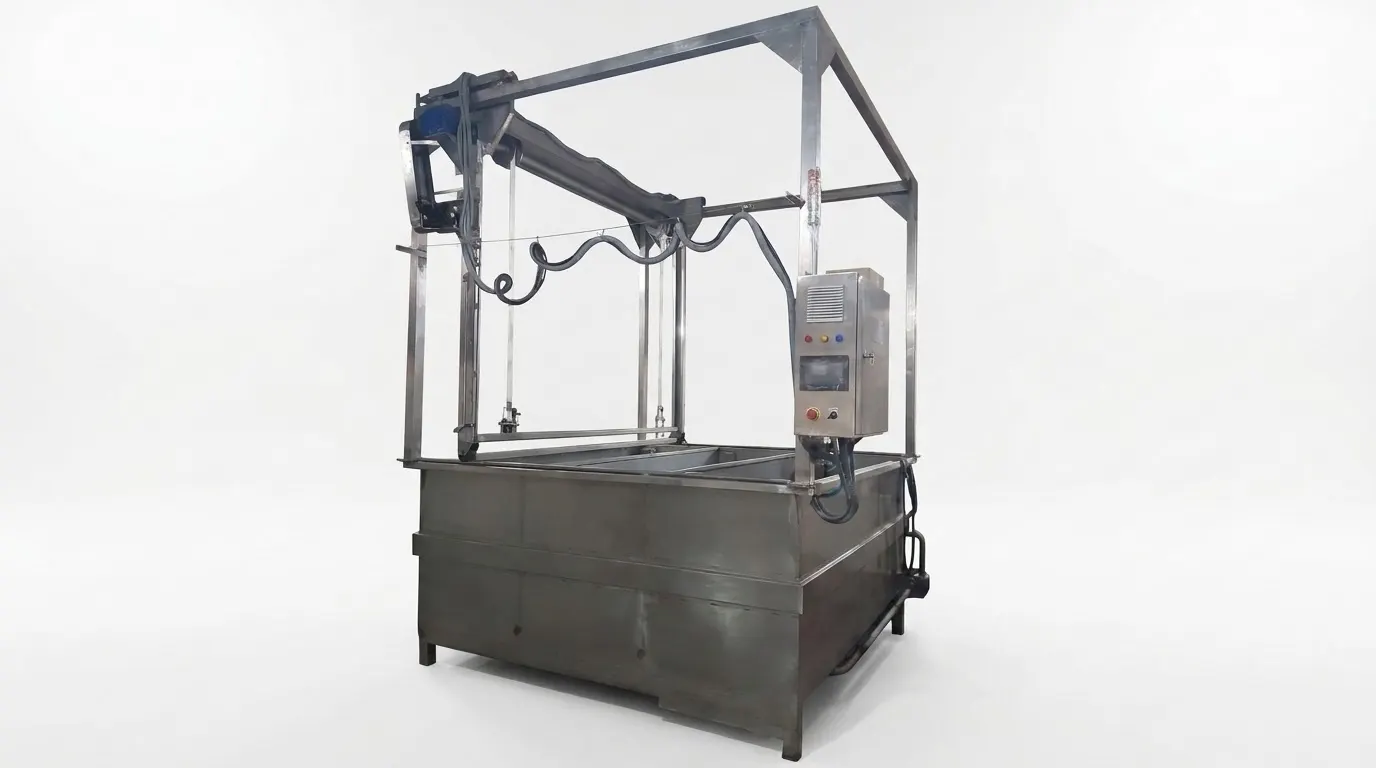

SS 316 dip dyeing machine with hydraulic jack drive, steam coil heating, pneumatic filling & drain and timer-controlled up / down / dip motion.

Capacity: As per your requirement
Built by: Two Star, Lahore

Request quote WhatsApp

Download brochure (PDF)

Overview

Our dip dyeing machine is engineered for ombré, dip-dye and special effect garment dyeing. A hydraulic jack system raises and lowers the garment hanger, while the timer panel controls up, down and dip cycles for repeatable effects.

The tub is built from 3 mm SS 316, with an SS steam coil, 3 HP circulation pump, pneumatic steam / fill / drain valves and an optional colour dosing tank with agitator.

Key features

Steam, filling & drain with pneumatic system
Temperature gauge — manual & auto
Up / down / dip control with timer
Hanger drive structure with 1½" SS pipe
Panel with new accessories
All bearings new

Technical specifications

SPEC-004

Dip Dyeing Machine specifications
Capacity	As per your requirement
Size	As per capacity
Tub sheets	3 mm SS 316
Tub side sheet	3 mm SS 316
Pillars	SS 304, 3" × 3" × 3 mm square pipe
Steam coil header	6 mm SS sheet with 3 mm SS pipe
Steam coil cover	SS 1.2 mm
Drive	Hydraulic jack system, 2.2 kW
Circulation pump	3 HP, 1400 RPM
Colour dosing tank	2 mm sheet, 24" × 24" with agitator (optional)
Agitator motor	1 HP, 900 RPM
Steam in / out	1 inch
Water filling / drain	3 inch / 6 inch
Main drive reel	SS pipe 3" dia, 4 mm thick
